Work Order

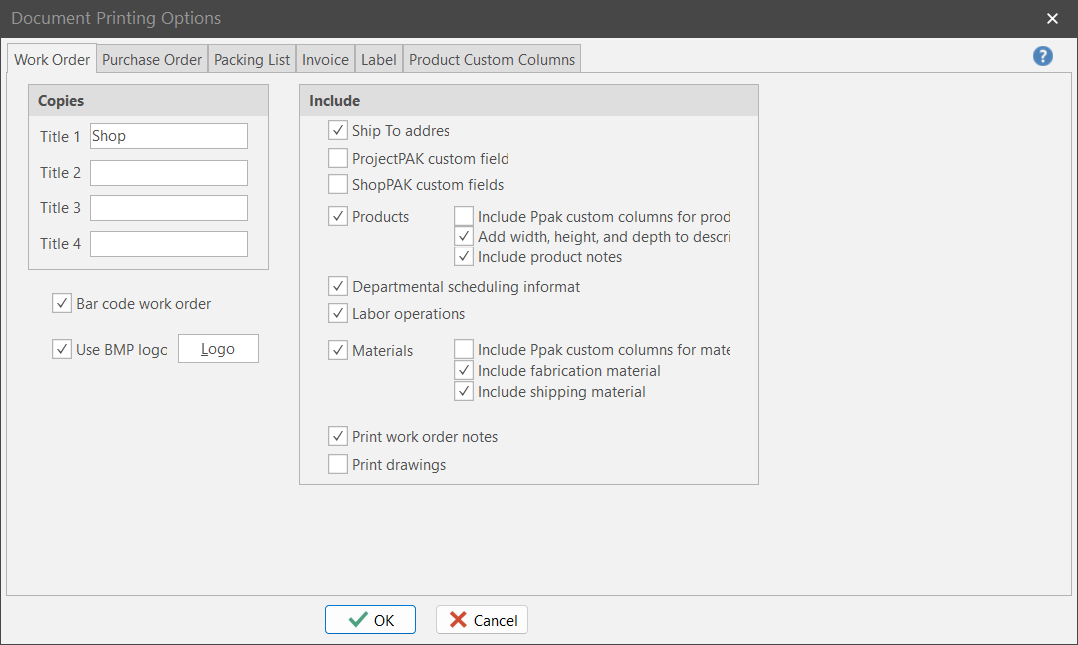

The first tab holds the Work Order default document printing instructions.
Copies
Print up to 4 copies of a given work order. Each copy can have a unique title.
Note: This option simulates a paper-based system that requires different physical work order copies in order to function. With ShopPAK, it is highly likely that only one physical work order will need to be printed, provided interested parties have access to a ShopPAK PC.
|
Bar Code Work Order
Click the checkbox if you want ShopPAK to generate bar codes on work orders. Bar coding a work order speeds the process of collecting shop floor actuals and reduces data entry errors. You’ll need to be using ShopPAK’s automated shop floor data collection system, including TriCoders that have bar code readers, for this option to be useful.
Use BMP Logo
If you want to print your company logo at the top of the work order, click the checkbox. ShopPAK reads BMP file format. Use the “Logo” button to identify the BMP file that contains your business logo, and the position you want to print the logo.
Include Box
Check the work order sections that you want printed on a work order.
